China Stirred Reactors Manufacturers Suppliers Factory - Customized Stirred Reactors

Weihai CM is a professional manufacturer of stirred reactors in China, which has provided high-quality reactors and mixing system for petroleum, chemical industry, pharmaceutical and materials industries for more than 20 years. Our products can achieve precise supervision and control of the entire process of chemical reactions under continuous or discontinuous stirring operations (e.g. CSRT - Continuous Stirred Tank Reactor), so as to reaching the aims of high efficiency, high purity, and high production rate.

According to the different process requirements, it can be made of carbon steel, stainless steel, composite metal plate or other corrosion resistant materials, to withstand high temperature, high pressure and a variety of chemical corrosion environment.

Magnetically Driven Stirred Reactor
The magnetic drive realizes non-contact torque transmission of agitator in the reactor with a magnetic driven device and a static sealing structure. It transmits torque through the principle of magnetic coupling and, at the same time,
read more
Mechanical Seal Stirred Reactor
The reactor seal is located between the stationary tank head and the rotating stirred shaft, which is not only related to the equipment life time and maintenance costs, but also directly affects the operational safety, process efficiency
read more
Polymerization Reactor
Polymers are synthesized from monomers in polymerization process. It is a key step in the synthesis of polymer materials and occupies a core position in the chemical industry, which has greatly enriched and promoted the development and
read more
Hydrogenation Reactor
Hydrogenation generally has high requirements for pressure and temperature, while the operational safety is also an important task that must be fully ensured. Weihai CM produces excellent clad plates for pressure vessels over two decades,
read more
Continuous Stirred Tank Reactor
Continuous stirred reactions put forward high requirements for the mixing system of the reactor as the process need to be quickly and fully carried out with the help of efficient mixing after the materials enter the vessel. Weihai CM has
read more
Crystallization Stirred Reactor
Crystallization is an effective separation and purification technique, meanwhile, it can make products obtain specific physical forms. Many chemical products need to undergo crystallization after synthesis to remove impurities and obtain
read more

With the excellent features like non-contact operation, resistance of high temperature & high pressure, and corrosion, Weihai CM's stirred reactors are quite suitable for EV battery, plastics, food, pharmaceutical and other fine chemical industries requesting for harsh process, such as flammable, explosive, toxic media chemical reaction. Compared with the traditional mechanical seal or packing seal, the magnetic-sealed reactor has significant advantages of longer service life with zero leakage, lower maintenance cost, high purity and simple structure.

Specification

Diameter	Φ200 – Φ7,000 mm
Maximum Volume	260 m³
Maximum Pressure	35 MPa
Maximum Temperature	450 ℃
Available Material	Carbon steel, stainless steel, nickel-base alloy, titanium alloy, copper alloy, zirconium alloy, and clad plate for above material

Strong Capability

As a first-class heavy chemical equipment manufacturer in China, Weihai CM owns large workshops over 150,000 square meters with modern manufacturing and inspection equipment, enabling the whole manufacturing process of oversized and overweight pressure vessels. Our stirred reactors, with the excellent quality and satisfactory technical services, have a market share of over 80% in China, and supply to more than 20 countries and regions worldwide.

CFD Analysis

Learning customer requirements, our technical team use 3D modeling software, CFD analysis and FEA finite element analysis to accurately simulate and analyze the fluid behavior, heat transfer process, multi-physical field coupling, and the structure of the reactor, so as to evaluate and provide scientific basis for optimization.

Simulation Verification

Testing by the experimental stirring reactor in the laboratory in similar conditions for simulation, it can not only be used to verify the accuracy of the simulation results but also for our engineers to improve and optimize the structure, size, material and other aspects of the reactor, so as to improve the safety and lifetime.

Certification

ISO & HSE	ISO9001 ISO14001 ISO45001
ASME	ASME U1 & U2 Code ASME NB Code
GB	A1, A2 GC 2/3
Classification Society	ABS for Explosion Bonded Plate ABS for Pressure Vessel Manufacturers

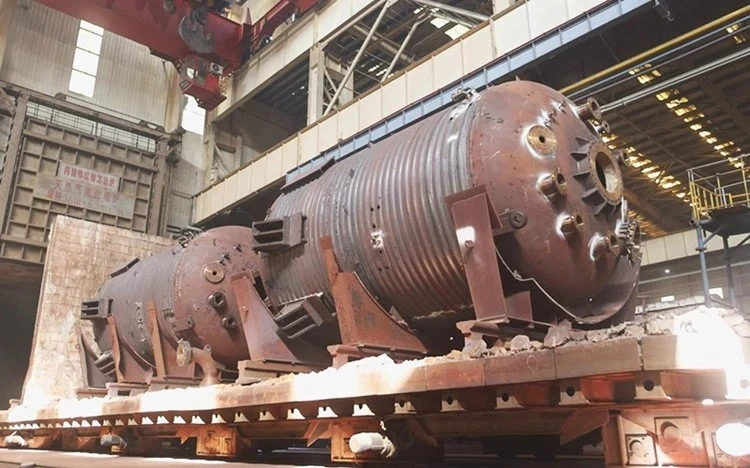

How We Manufacture

Related Topics

Pressure Vessels

Explosive Clad Plates

R&D capabilities

Services

References

46m³ High Pressure Reactor

Horizontal Reactor

83m³ Polymerization Reactor

High Pressure Reactor

Weihai Chemical Machinery Co., Ltd. is one of the leading stirred reactors manufacturers and suppliers in China. We warmly welcome you to buy OEM stirred reactors from our factory. All customized products are with high quality and low price. For quotation, contact us now.
